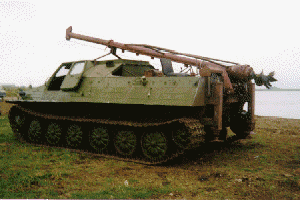

Crane-drilling machine GT-B
Tech characteristics:
Weight, t - 10,3. Overall dimensions in transport position, mm: length - 7200,
width - 3140, height - 3170. Average specific pressure upon a
ground, kg/sm2 - 0,24.
Max speed, km/h: on land - 35, on water-
5. Engine type - YAMZ-238, engine power, h.p.-
240. Depth of drilling, m - 2,7. Diameter of drilling, m-
0,36-0,8. Carrying capacity of the crane equipment, t
- 1,6.
|
