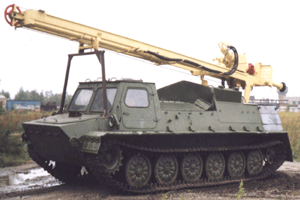

Geophysical drilling machine MT-URB
Tech characteristics:
Based on MT-LBu (MT-LBV) chassis. Weight, t - 13,2 (12,5). Overall dimensions,
mm: length - 7850, width - 3140, height - 3150. Average specific pressure on
ground kg/sm2 - 0,25 (0,29). Engine type - YAMZ-238N1 (YAMZ-238),
engine power, h.p. - 300 (240). Drilling method-
auger boring. Depth of drilling, m - 30. Diameter of drilling,
mm - 135. Frequency of boring flight rotation, rot/min-
140, 225, 325.
Additional equipment: wheel or
caterpillar trailer with compressor installation, welding generator and other.
|
