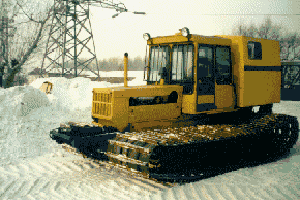

All-terrain tractor-conveyor SBTT-4P
Tech characteristics:
Weight, t - 11,0. Overall dimensions, mm: length - 7850,
width - 3140, height - 3080. Average specific pressure on
ground kg/sm2 - 0,26. Engine type - YAMZ-238,
engine power, h.p. - 240. Drilling method-
auger boring. Depth of drilling, m - 30. Diameter of drilling,
mm - 135. Frequency of boring flight rotation, rot/min-
140,225,325.
Additional equipment: wheel or
caterpillar trailer with compressor installation
|
